Description
This machine is based on the principle that metal objects generate huge eddy currents and generate heat under the action of high-frequency electromagnetic fields. The aluminum foil is heated by electromagnetic induction to melt the adhesive film under the aluminum foil and adhere to the bottle mouth to achieve continuous and fast non-contact sealing.
Parameter
Machine name
|

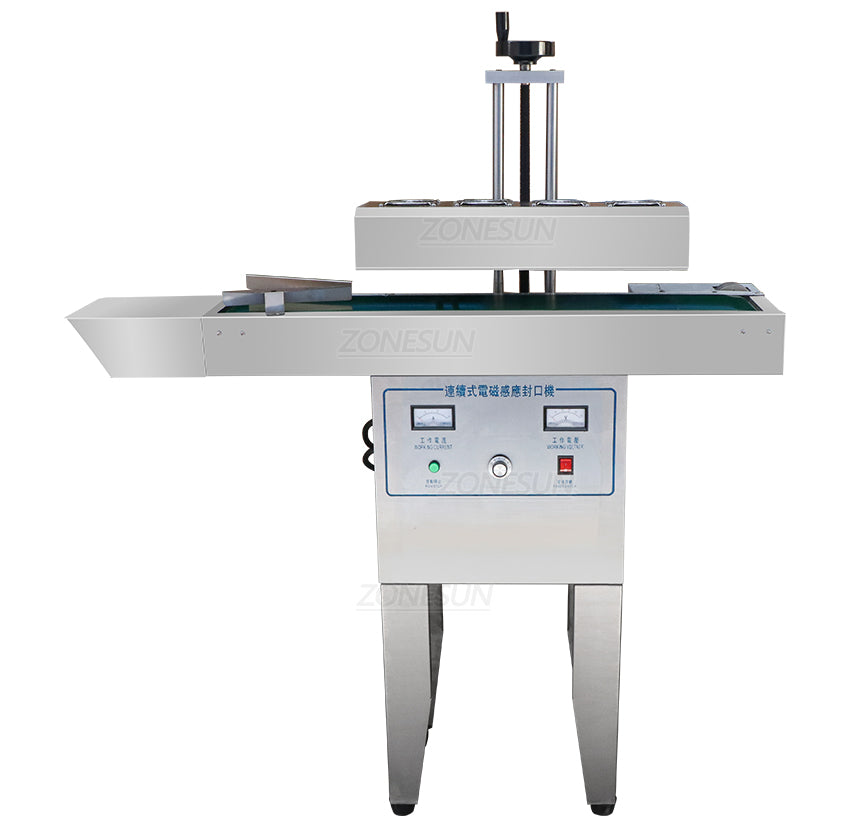

Automatic Aluminum Foil Sealing Machine
|
Input Power
|
220V/110V 50/60Hz
|

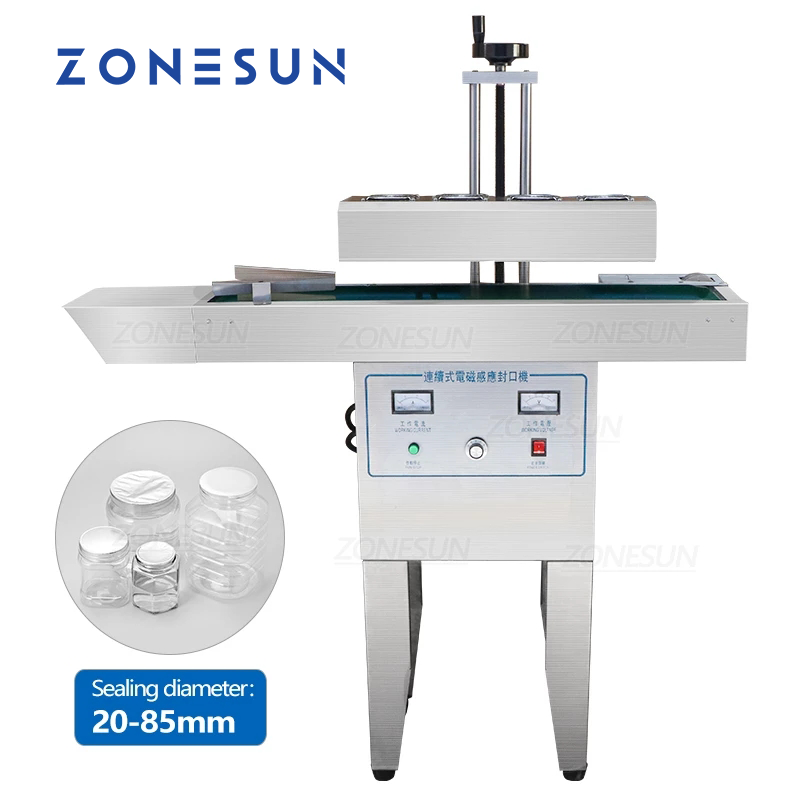

Sealing Diameter
|
20-85mm
|
Suitable Bottle Height
|
10-270mm
|
Machine Material
|
Stainless Steel
|
Conveyor Length
|
85.5cm
|
Conveyor Width
|
13.4cm
|
Maximum Power
|
2100W
|
Machine size
|
112.7*29.2*135cm
|
Working speed
|
0-15bottles/min(depending on the size and material of object sealed)
|
Gross Weight
|
43.5kg
|
Application
This automatic machine is suitable for aluminum foil sealing of various plastic bottles and glass bottles, whose diameter is 20-85mm. It can be used as a part of production line. Greatly improve working efficiency.
