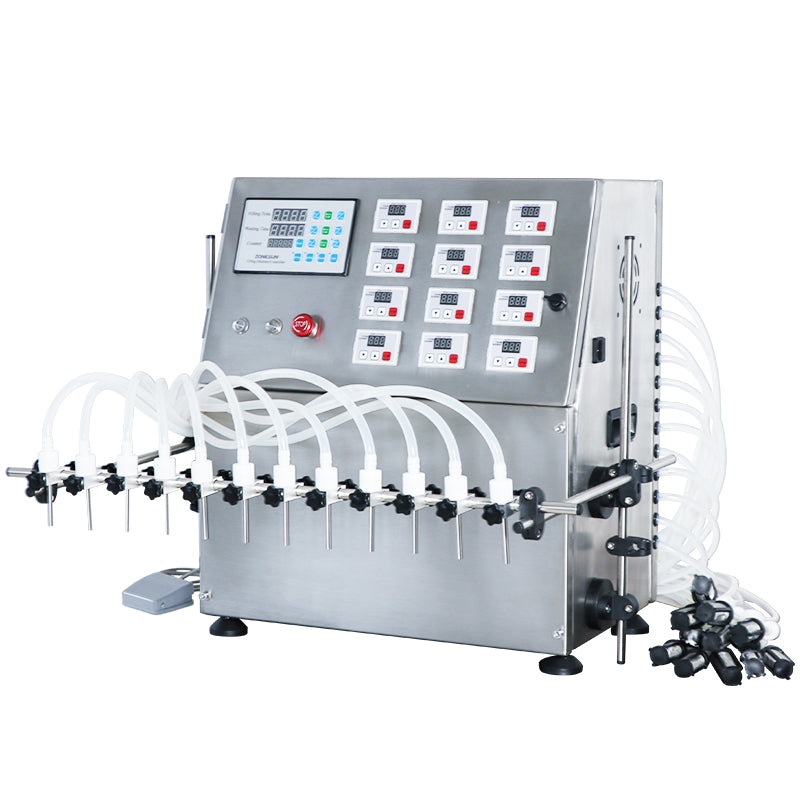

The ZONESUN ZS-DPYT12P is a semi-automatic liquid filling machine equipped with 12 diaphragm pump nozzles for high-speed, low-viscosity liquid filling. Controlled by a micro-computer system, it ensures precise dosing and smooth operation. The stainless steel body meets GMP standards and features an LCD display, anti-drip design, and dual working modes—pedal and automatic—for flexible use. With a maximum flow rate of 4L/min per nozzle, it’s ideal for filling juice, soybean milk, and other thin liquids in pharmaceutical, cosmetic, and beverage industries.
PARAMETER
-
Machine Model: ZS-DPYT12P
- Voltage: 220V/110V 50-60Hz
- Power: 300W
- Rated Current: 2.5A
- Machine Pump: Diaphragm Pump
- Filling Range: 50-4000ml
- Max Flow Rate: 4L/min*12 (based on water)
- Filling Nozzle Diameter: OD 6mm
- Filling Accuracy: 0.5% (depend on the density of product)
- Machine Weight: 42kg
- Machine Size: About 500mm*330mm*580mm (L*W*H)
- Package Weight: 49kg
- Package Size: About 650mm*450mm*650mm (L*W*H)
