DESCRIPTION

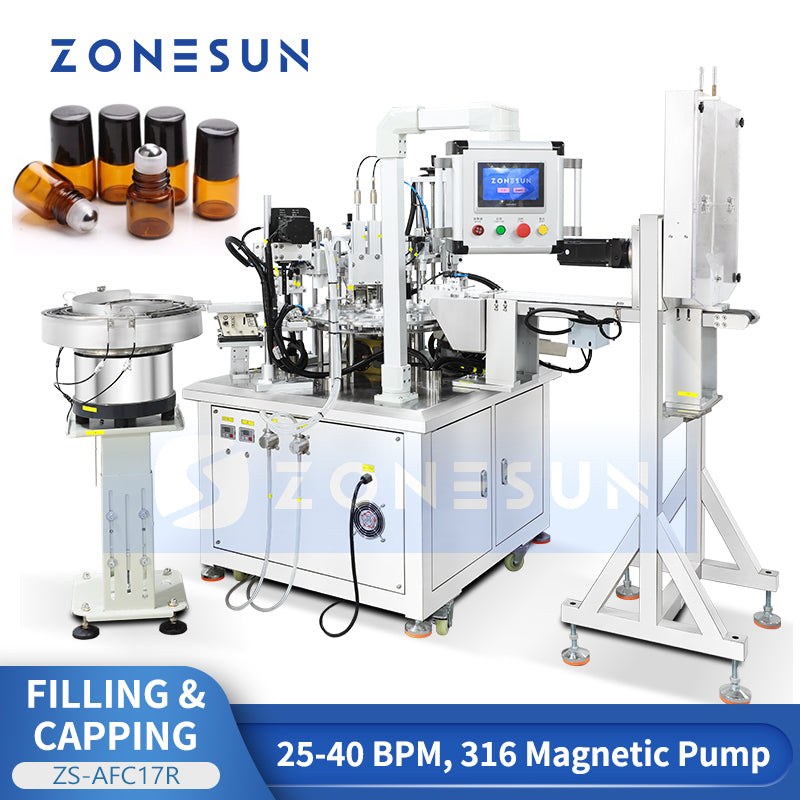

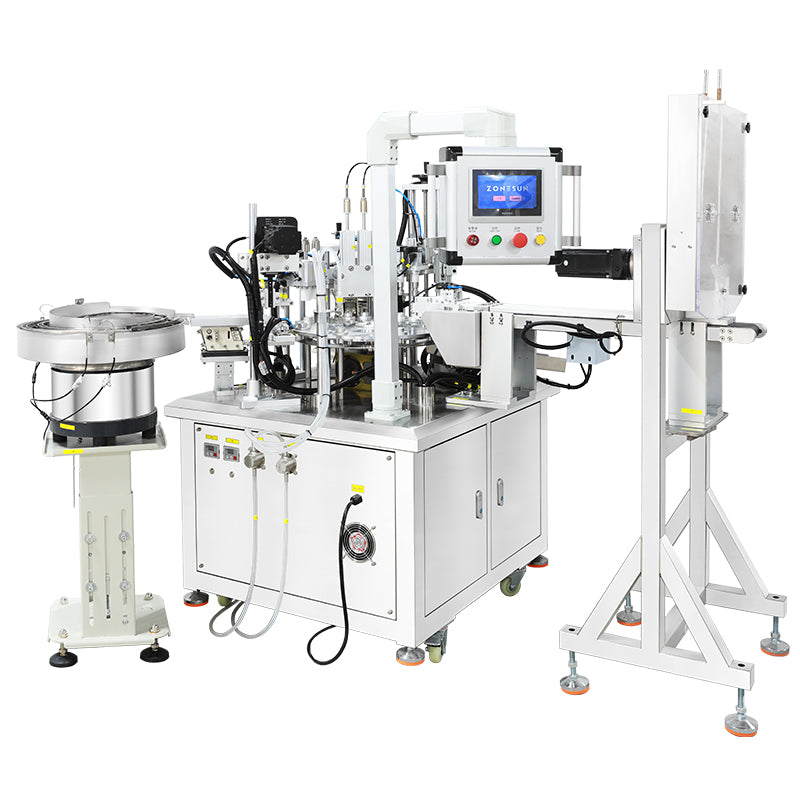

This automatic roller ball bottle filling and capping machine is a high-efficiency, fully automated device designed specifically for small roll-on bottles (can not stand upright during conveying), ideal for filling and sealing liquids such as perfumes and essential oils. This machine integrates bottle feeding, liquid filling, roller ball pressing, and outer cap sealing, enabling a fully automated production process from empty bottles to finished products. Equipped with a SUS316 magnetic pump, it ensures a filling accuracy of ±1%, suitable for filling volumes of 5-20 ml. Compact design not only saves space but can also be connected to a horizontal labeling machine to complete the entire packaging process.
Parameter
- Machine Model: ZS-AFC17R
- Voltage: AC110V/220V, 50-60Hz
- Power: ~2.5KW
- Filling Pump: Magnetic Pump
- Number of Filling Heads: 2
- Suitable Bottle Size: Φ15-30 mm, H=50-120 mm
- Suitable Cap Size: Φ15-25 mm
- Working Speed: ~25-40 BPM
- Recommended Filling Volume: 5-20 ml
- Filling Accuracy: ±1%
- Air Pressure: 0.4-0.8 MPa
- Machine Size: ~1937×1866×1628 mm
- Machine Weight: ~480 kg
- Package Size:
Vibratory + Conveyor: ~1130×820×570 mm
Bracket: ~800×650×1870 mm
Main Machine: ~1180×1110×1760 mm - Package Weight: ~656 kg (145+125+386 kg)

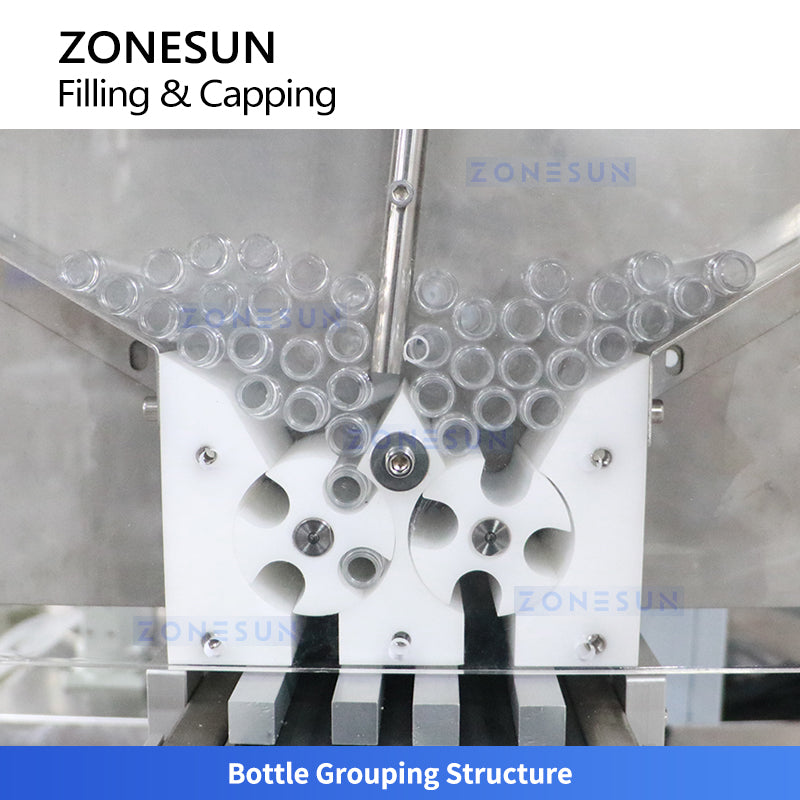

BOTTLE GROUPING
Customizable based on bottle size, it transports bottles in time and orderly.

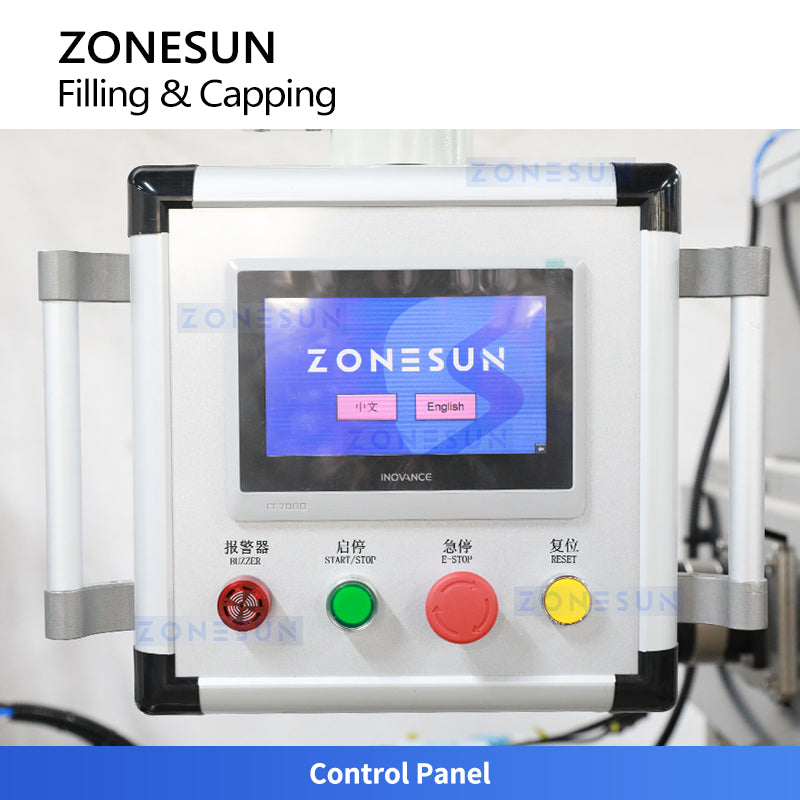

CONTROL PANEL
Equipped with a swing arm, makes parameter setting more convenient & more intuitive.

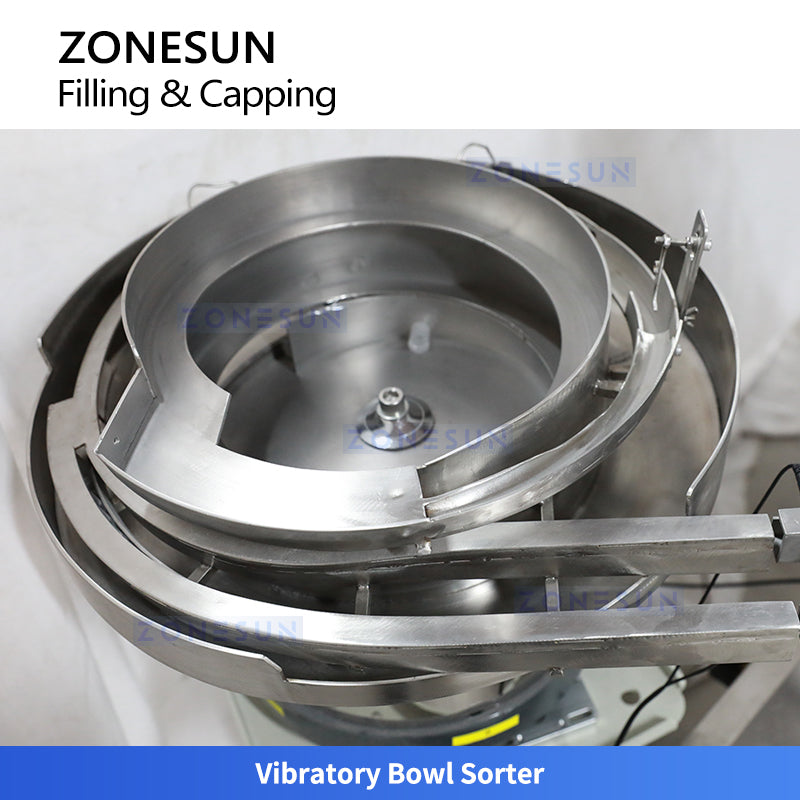

VIBRATORY BOWL
Customizable based on roller ball size, it can feed roller ball in time to ensure smooth work.

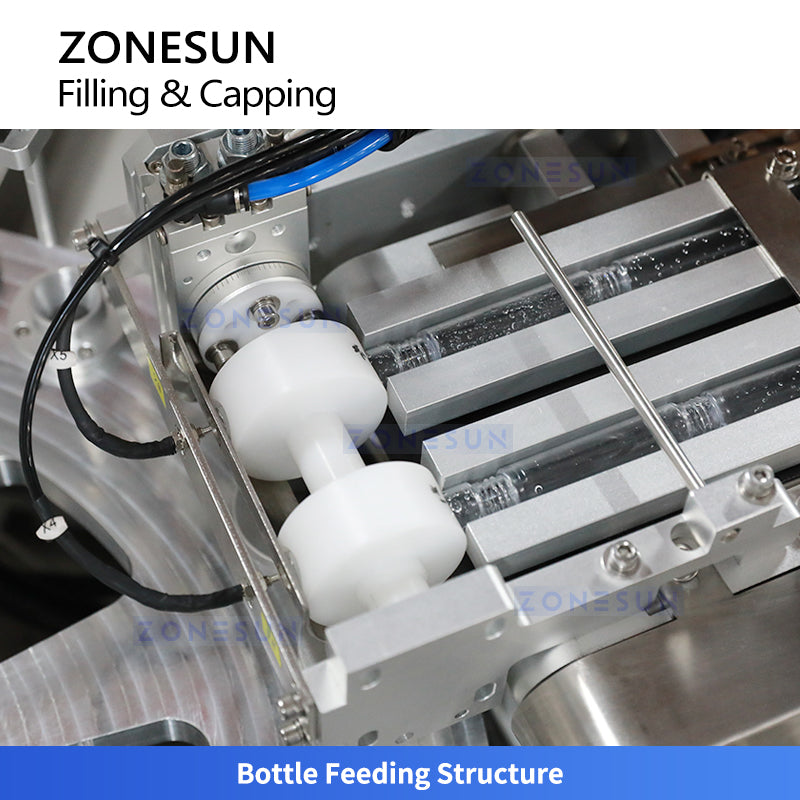

BOTTLE FEEDING
Ensure bottles can be put upright into starwheel, improves working accuracy.

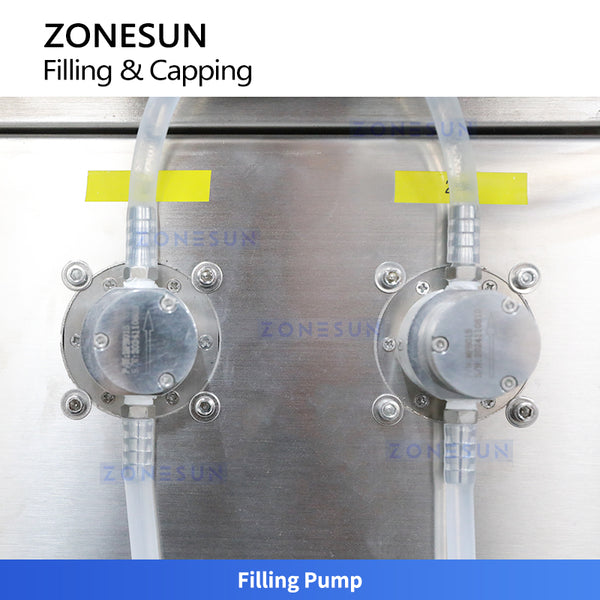

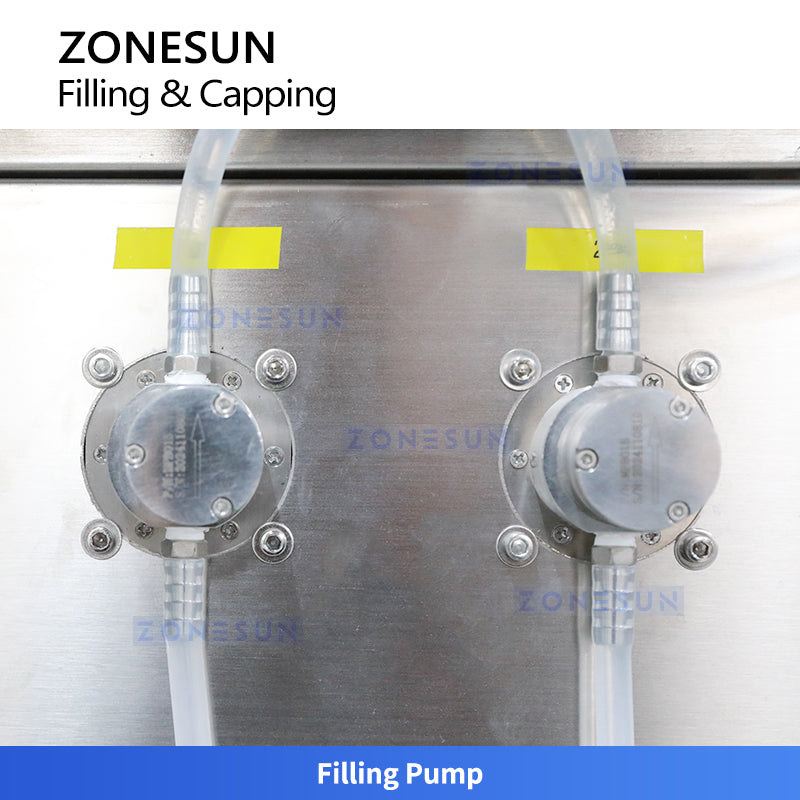

FILLING PUMP
Equipped with SUS316 magnetic pump, type of filling pump is customizable as production need.
