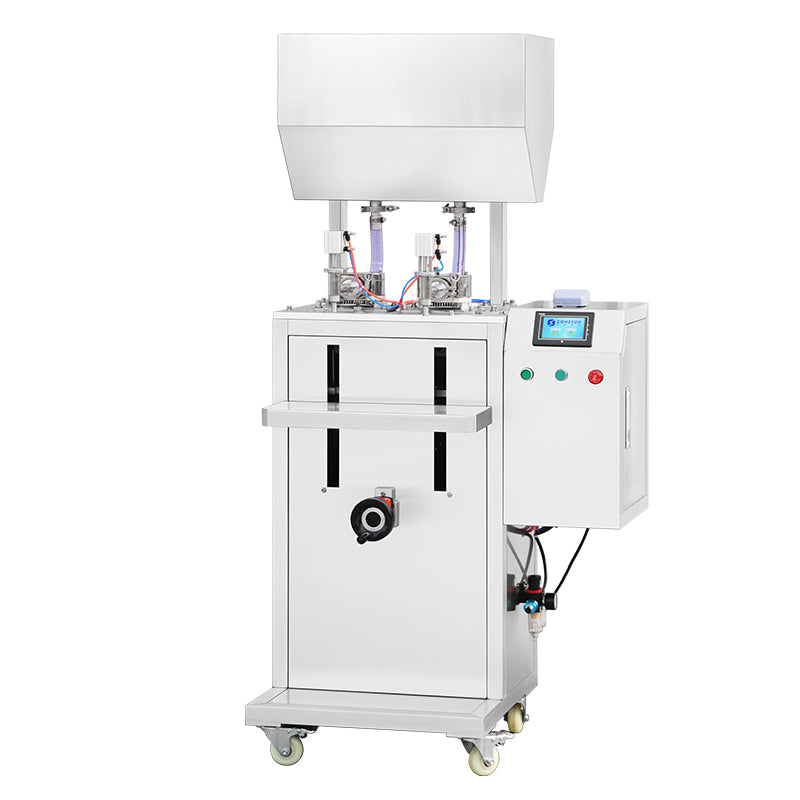

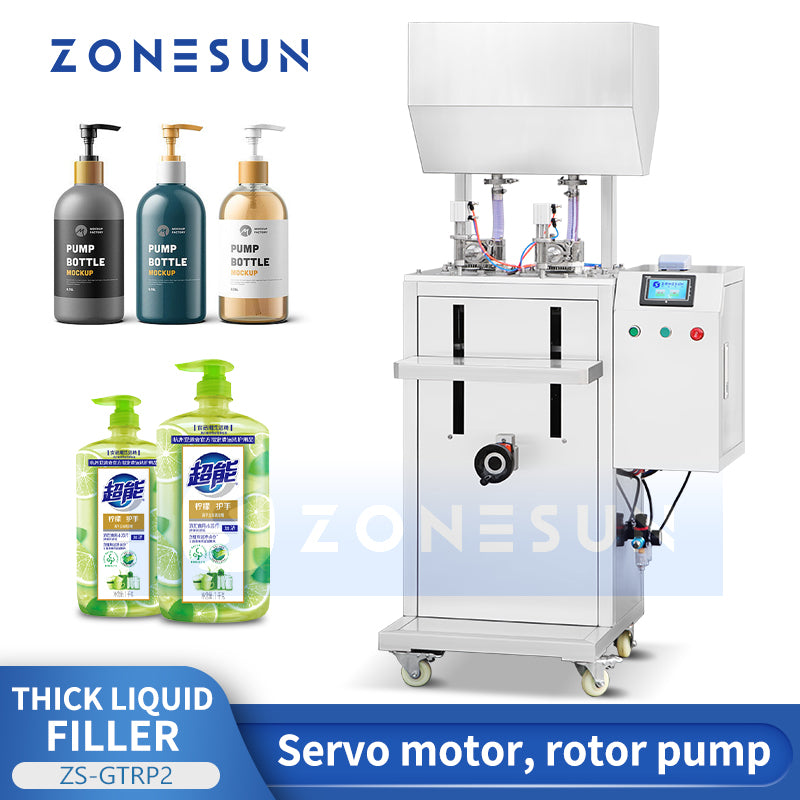

DESCRIPTION

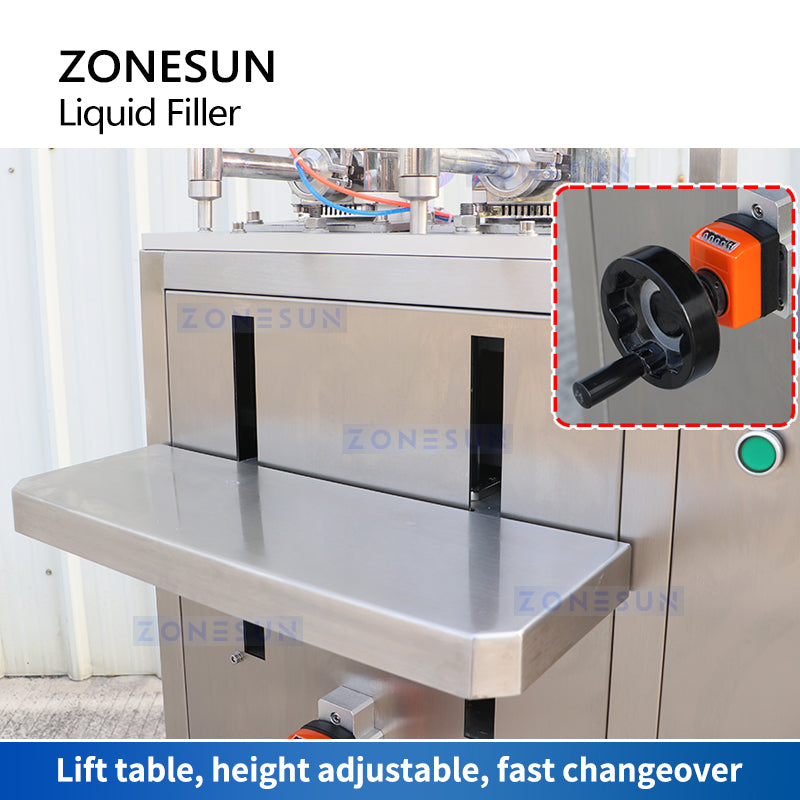

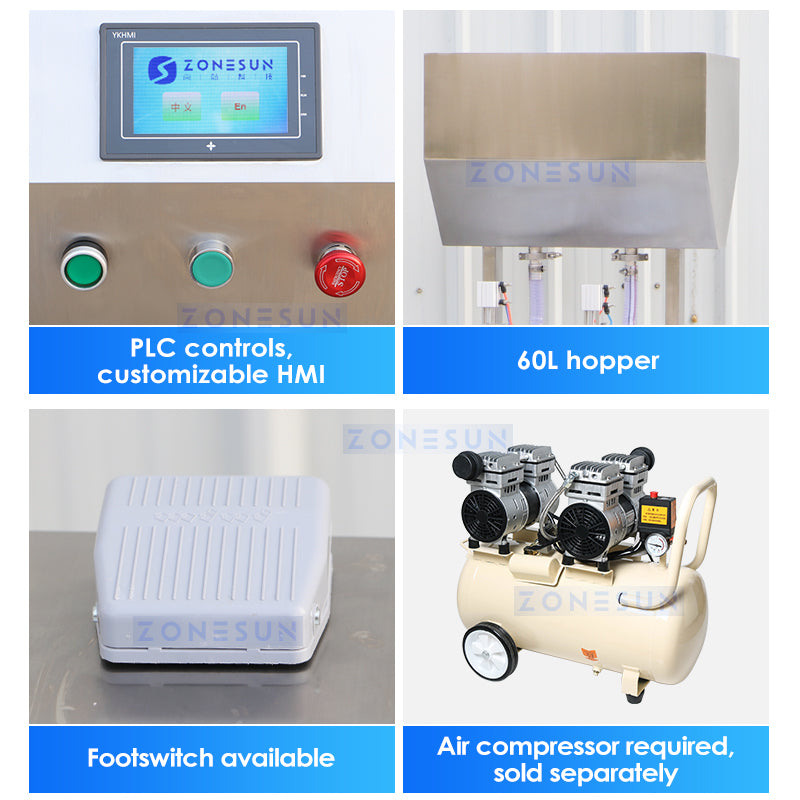

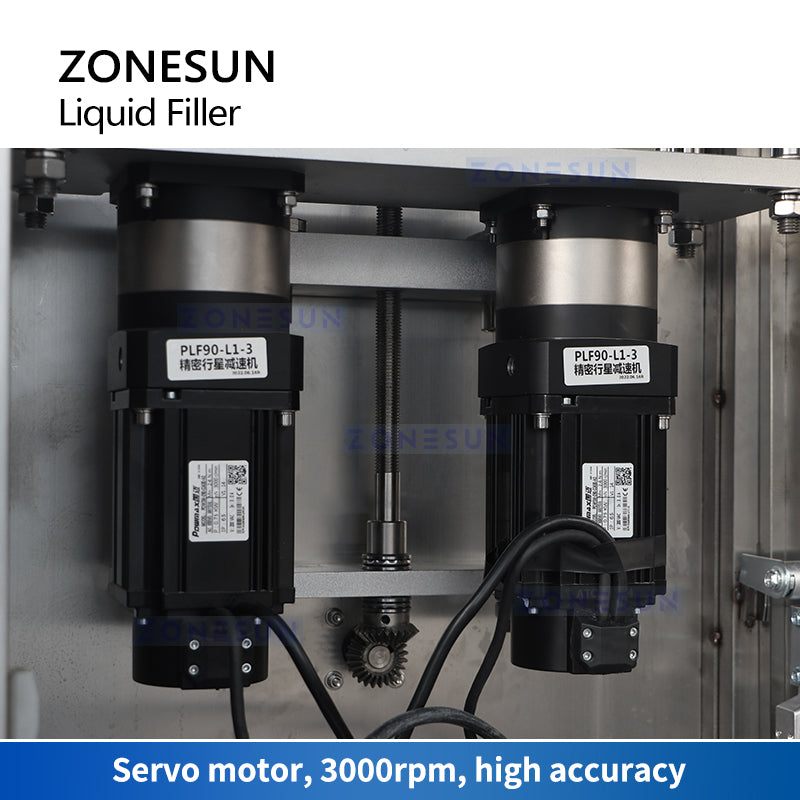

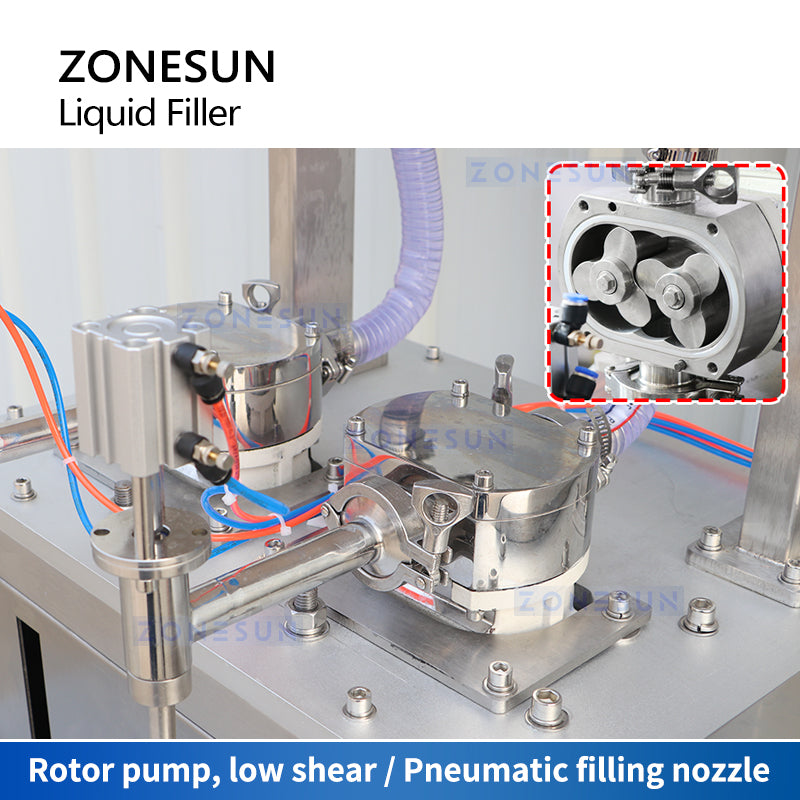

This machine is designed with dual rotary pumps, both driven by a servo motor, providing fast and accurate filling for your liquid products. The machine has a 60L capacity hopper on the top with an air-powered filling nozzle. It features a vertical design with a lift table to place bottles for filling. The PLC control system with a touch screen interface allows for easy operation and precise filling adjustment. The machine also comes with a calibration function to ensure accurate filling every time.
Whatever your packaging needs are, you can rely on ZONESUN.
PARAMETER
Machine model
|
ZS-GTRP2
|
Voltage
|
110/220V, 50-60HZ, 2kW
|
Filling pump
|
Rotor pump*2
|
Drive
|
Servo motor*2, 3000rpm
|
Recommend filling volume
|
5-5000ml
|
Filling accuracy
|
≤±1%
|
Filling nozzle size
|
Φ8mm
|
Hopper size
|
600*360*400mm(L*W*H) / 60L
|
Working speed
|
About 30bottles/min (1L)
|

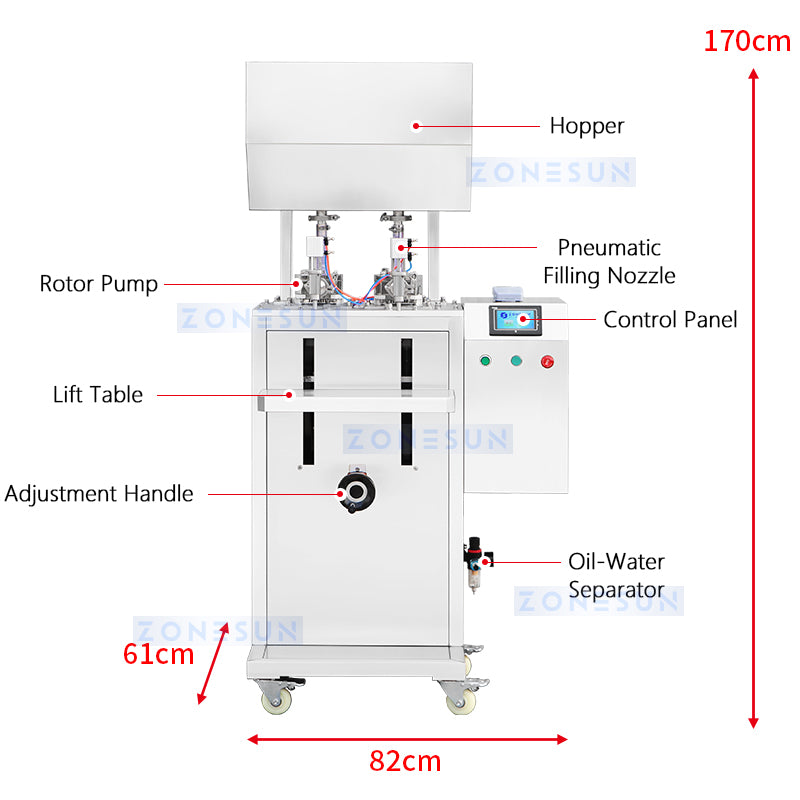

Machine size
|
About 820*620*1700mm(L*W*H)
|
Machine weight
|
About 128kg
|
